Data Sources

Data Sources connect Freedam to an external system and keep it in sync over time. Unlike a one-shot spreadsheet import, a source remembers what it pulled last time and, on every refresh, only downloads what has changed - new files are ingested, updated files get a new version, and files that have disappeared upstream are soft-archived.

This feature is designed for operators who connect Freedam to an upstream DAM, product catalog, or file repository. Creating, editing and deleting sources requires the Manage import sources permission. View import sources shows sources and their runs without allowing changes, and Run import sources also allows starting a run and applying or cancelling it.

Page Overview

• Purpose: Configure and monitor long-lived connections to external data systems.
• When to use it: When assets or catalog data live in an upstream system and need to be kept in sync with Freedam on a regular basis.
• Where to find it: Administration → Operations → Data sources.
• What you can do here:
  • Create and manage source connections (WebDAV, S3, Google Drive).
  • Configure how files map to collections (folders, catalog, matching, sections, disposition).
  • Trigger manual refreshes, sample test runs, or dry-runs.
  • Review run history and the plan computed for each refresh.
  • Cancel a run in progress, or the downloads still waiting after a run has finished.

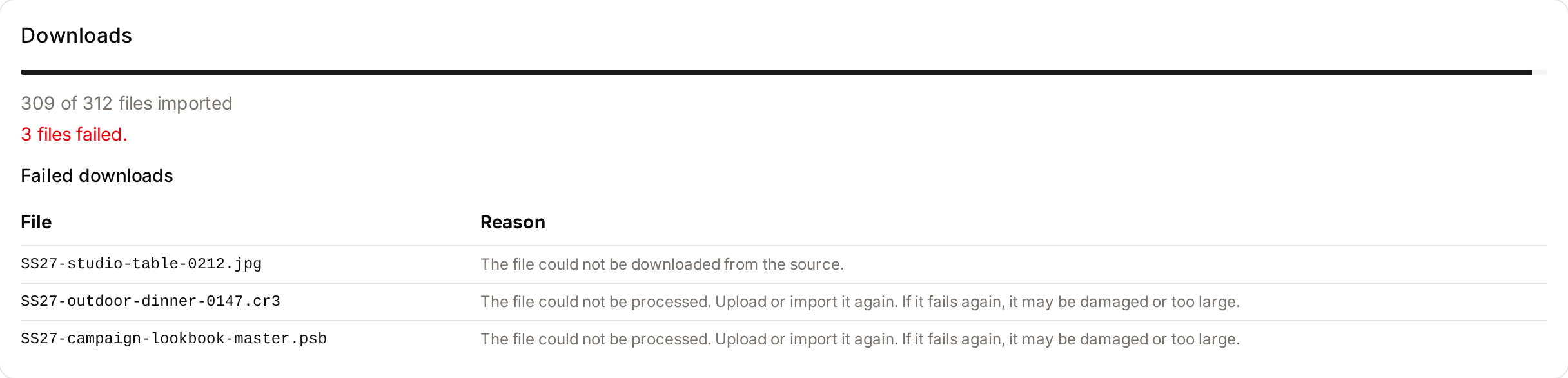

  • See which downloaded files failed, with the reason.
  • Review unmatched files (imported without a catalog match) and re-link, dismiss, or remove them.
  • Enable or disable a source without deleting its configuration.
  • Export a source's configuration as JSON and import it into another workspace.

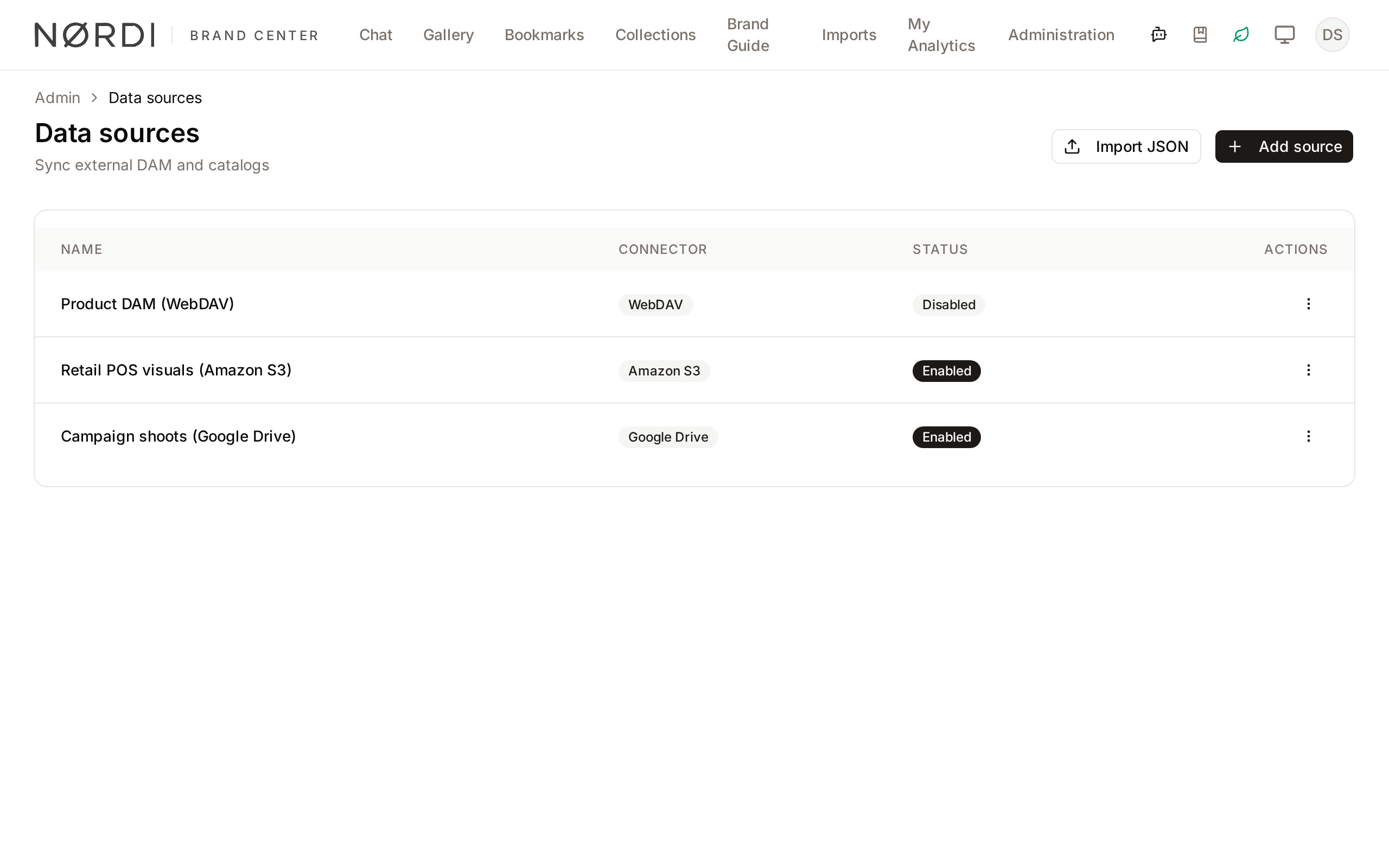

The list shows each source's Name, Connector, Last run (date and status), Schedule and Status (Enabled or Disabled). The row menu offers View and Delete.

Connectors

Freedam ships three connectors. Choose based on how your upstream system exposes files.

Connector	Best for	Authentication
WebDAV	Synology NAS, Perfion DAM exports, ownCloud, SharePoint (WebDAV endpoint), any Apache mod_dav server	Username + password (Basic or Digest)
Amazon S3	AWS S3 buckets, MinIO, Wasabi, or any S3-compatible object store	AWS access key + secret key
Google Drive	Shared drives or specific folders in Google Drive	OAuth access token

All connectors are read-only. Freedam never writes back to the upstream system.

Connecting to WebDAV (Synology / Perfion Example)

This walkthrough uses a Synology NAS running Perfion DAM as the upstream source. The same steps apply to any WebDAV server.

Before you start

You will need:

• The server's base URL, including the port (e.g. https://myserver.example.com:5006)
• A username and password with read access to the files
• The base path on the server that contains your data (e.g. /Dam)

Synology DSM ships WebDAV over HTTPS on port 5006 by default. Port 443 is often not configured for WebDAV. If your server uses a self-signed certificate, see the TLS note below.

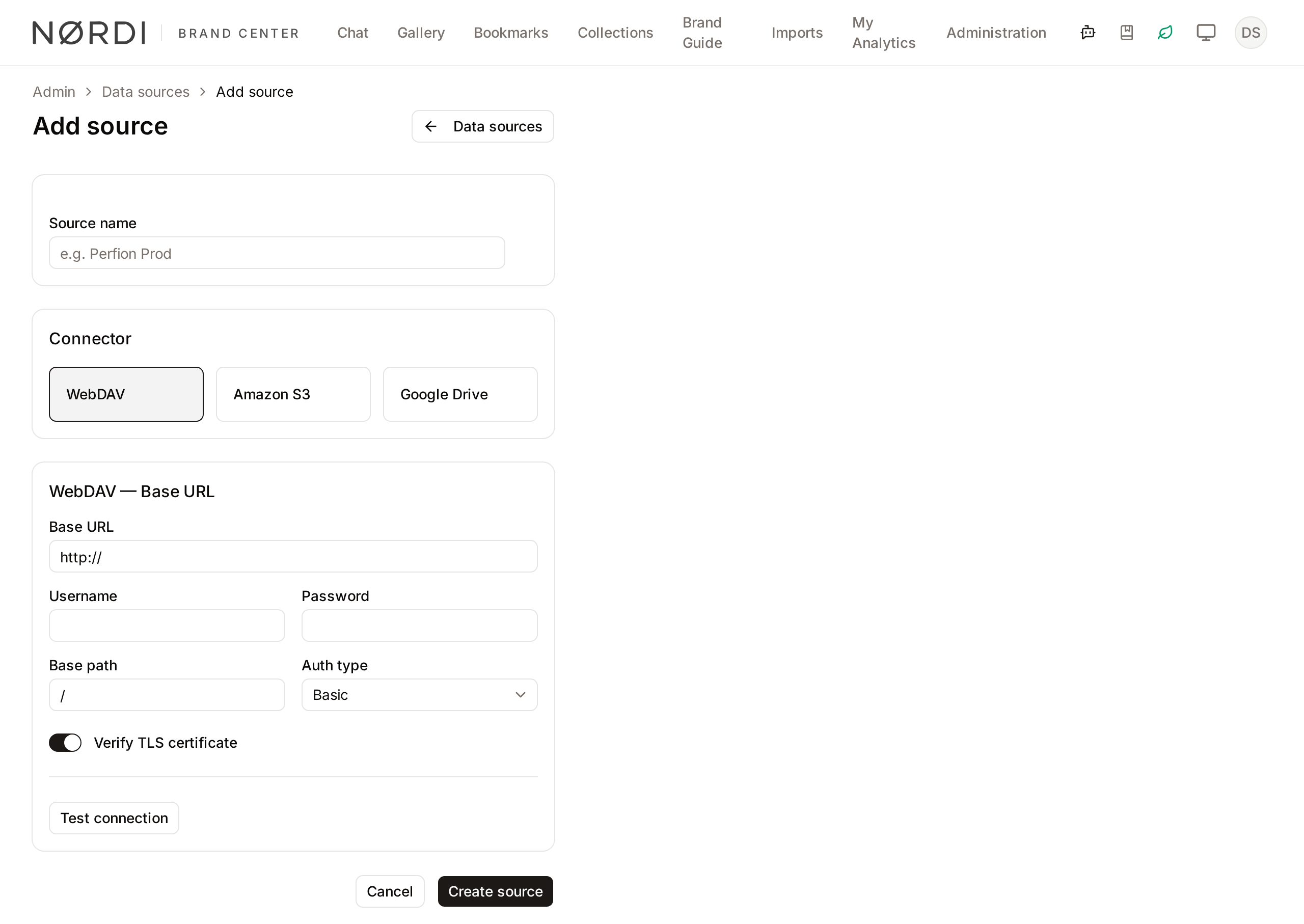

Step 1 - Visit the create page

Go to Administration → Data sources and click Add source.

Step 2 - Name the source and pick the connector

Fill in Source name with a descriptive name. For the Perfion example:

Product catalog – production

Select WebDAV as the connector.

Step 3 - Fill in the connection form

Field	Example value	Notes
Base URL	https://nas.example.com:5006	Include the port. Must be HTTPS in production.
Username	<your-webdav-username>
Password	<your-webdav-password>	Stored encrypted; never logged.
Base path	/Dam	The root folder under which Freedam will look.
Auth type	Basic	Digest is also supported.
Verify TLS certificate	On	Turn off only if you fully trust the host and it uses a self-signed cert.

Warning: Turning off Verify TLS certificate leaves the connection open to interception. Only use this option on a trusted internal network.

Step 4 - Test the connection

Click Test connection. Freedam sends an OPTIONS request to verify that the server speaks WebDAV, then a PROPFIND to check credentials. A successful test shows a green panel with the catalog file and the folders Freedam found, the number of files in each folder, and a few Sample files:

Connected - found /Dam/Data/Datafields.csv and 3 folders.

/Dam/Images       8,082 files
/Dam/Videos       298 files
/Dam/Documents    371 files

The panel is informative only. You choose the folders and the catalog file on the Edit page after creating the source.

If the test fails, the panel shows Connection failed with an error code. See the Troubleshooting section.

Step 5 - Create the source

Click Create source. Freedam saves the connection and opens the source detail page. No data is downloaded yet - the first refresh is triggered separately (see Manual vs scheduled refresh).

After creating the source, open Edit to configure how files map to collections. The Edit page is organised into steps:

• Connection - the connector credentials you just entered (secret fields are blanked; fill them in only to change a credential).
• Folders & catalog - the destination, the asset folders to scan, the optional catalog spreadsheet, and how files are matched and linked.
• Column mapping - choose the catalog's key and name columns, and map each catalog column to a field, hierarchy level, vocabulary, or metadata key.

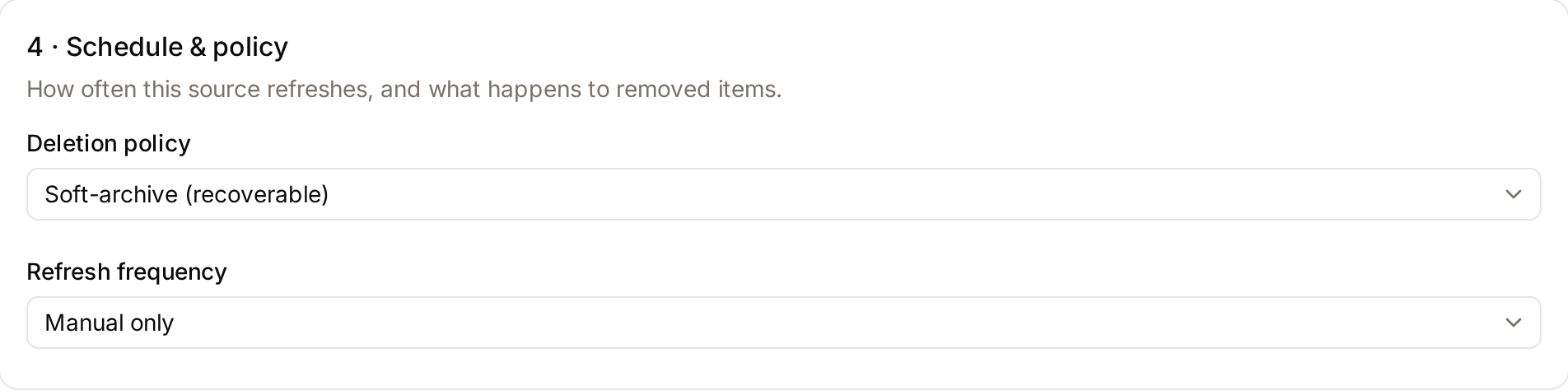

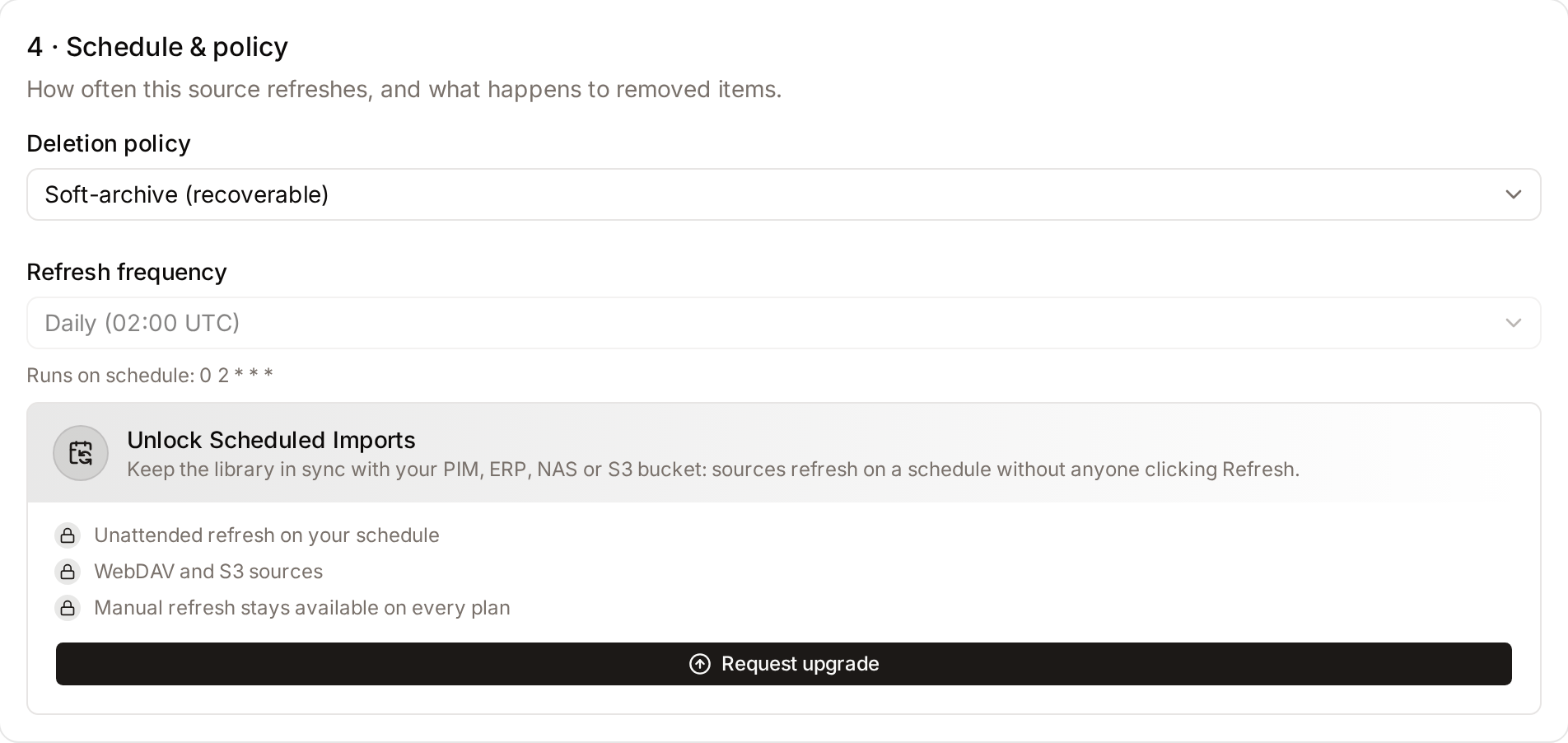

• Schedule & policy - how often the source refreshes (scheduled refresh requires the Business plan) and what happens to removed items.

Click Save changes to save the Edit page.

The next section, Mapping Files to Collections, walks through the Folders & catalog step end to end.

---

Connecting to S3

Before you start

You will need an IAM user (or role) with read-only access to the bucket. The minimum policy is:

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": ["s3:GetObject", "s3:ListBucket"],
            "Resource": [
                "arn:aws:s3:::your-bucket-name",
                "arn:aws:s3:::your-bucket-name/*"
            ]
        }
    ]
}

Replace your-bucket-name with the actual bucket name. Do not grant write permissions - Freedam never needs them.

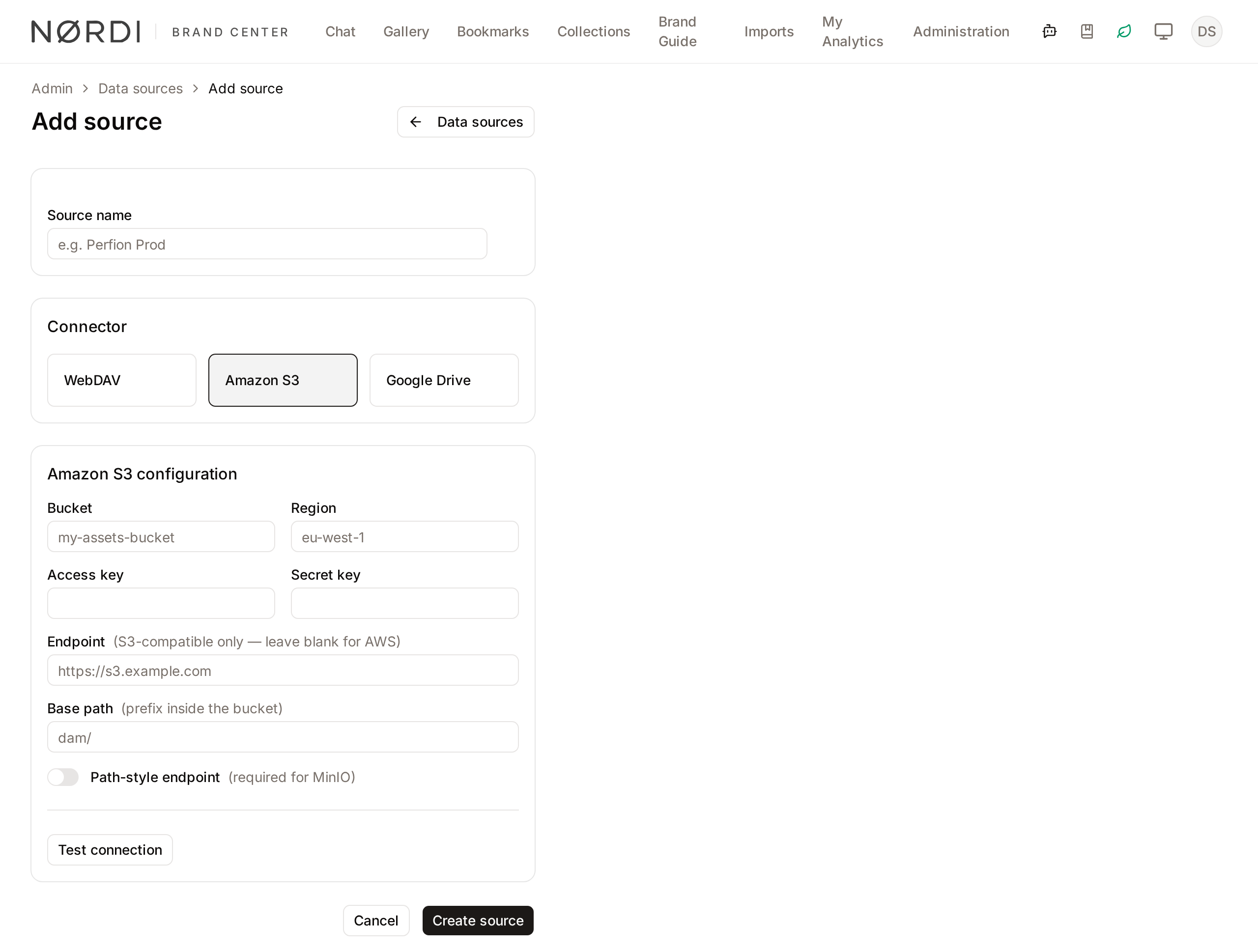

Connection form

Field	Notes
Bucket	Exact bucket name, e.g. acme-dam-assets
Region	AWS region, e.g. eu-west-1
Access key	IAM access key ID
Secret key	IAM secret key - stored encrypted, never logged
Endpoint	Leave blank for AWS. For S3-compatible servers, enter the full endpoint URL (e.g. https://s3.wasabisys.com for Wasabi or https://minio.yourcompany.com:9000 for MinIO).
Base path	Optional. Restrict ingestion to a specific prefix inside the bucket, e.g. products/2026/. Leave blank to pull the entire bucket.
Path-style endpoint	Turn on for servers that need path-style URLs. Required for MinIO.

Click Test connection to verify bucket access before saving.

---

Connecting to Google Drive

Note: The full OAuth flow (where Freedam requests access to your Google account directly) is planned for a future release. For now, you provide a short-lived OAuth access token that you generate manually from the Google Cloud Console.

Getting an access token

1. Open the OAuth 2.0 Playground in your browser.
2. In Step 1, enter the scope https://www.googleapis.com/auth/drive.readonly and click Authorize APIs.
3. Sign in with the Google account that has access to the target Drive or folder.
4. In Step 2, click Exchange authorization code for tokens.
5. Copy the Access token value.

Paste it into the OAuth access token field in the Freedam connection form.

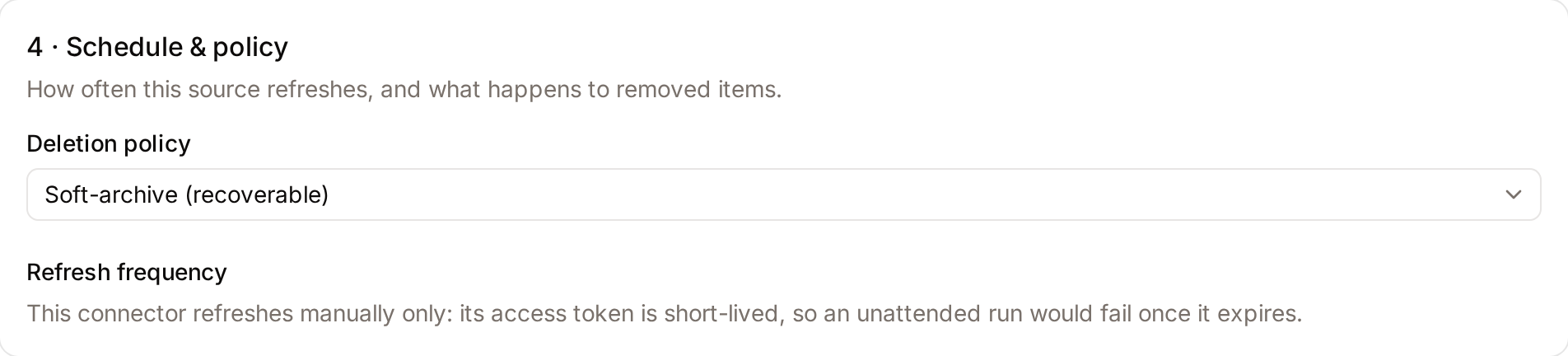

Warning: Google access tokens expire after about 1 hour, and the playground gives you no refresh token, so Freedam cannot renew it for you. For that reason Google Drive sources are manual only, on every plan: the Refresh frequency field is replaced by a note for them, and you trigger each refresh with Refresh now. Once the token has expired, a refresh fails with auth_failed, shown on the run page and as the source's last-run status. Freedam emails the users who manage data sources when the run fails (see Recovering from auth_failed). The source is not switched off: paste a fresh token into the connection form, save, and refresh again.

Connection form

Field	Notes
OAuth access token	The OAuth access token you generated above
Root folder ID	Optional. The Google Drive folder ID from the folder's URL: https://drive.google.com/drive/folders/<folder-id>. Leave blank to use the My Drive root.

---

Mapping Files to Collections

Everything in this section lives on the source Edit page, under the Folders & catalog step. This is where you tell Freedam which folders to scan, which (if any) catalog spreadsheet to read, and how each file should be matched to a record and placed into a collection.

You can configure a source three ways, from simplest to richest:

1. Folders only (no catalog). Files are imported and dropped into the folder's collection. Matching is filename-only.
2. Folders + catalog. A spreadsheet (CSV or XLSX) supplies one row per record; matched files inherit that row's metadata and hierarchy placement.
3. Folders + catalog + per-key grouping, sections, disposition, and vocabularies. The full mapping - one collection per record, files sorted into sections, derived files skipped, and filename tokens captured as metadata.

Destination

Under Destination you set where imported assets and collections are created:

• Asset class - the asset class applied to every imported file (unless a folder overrides it).
• Collection type - the collection type used for collections created by this source. A collection type must be set before a catalog can create collections.
• Root collection - the collection that imported collections are nested under. Picking an existing collection here also derives the collection type from it.
• Initial workflow status - the workflow status imported assets enter at. Leave it on Workflow default to use the workflow's start status. The source detail page shows the choice under Imports enter as, and the run history and execution log show each run's and item's Workflow status.

These are source-level defaults; individual asset folders can override the asset class and root collection (see Advanced options below).

Asset folders

Under Asset folders, click Add folder for each folder Freedam should scan. A folder browser opens: expand the tree, select a folder and click Use this folder, or click Add folder manually to type the path yourself. Each folder has:

Field	Notes
Label	A name for the folder, e.g. images. For your reference only.
Path	The folder path on the connector, e.g. /Dam/Images.
Include subfolders	When on, Freedam scans nested folders too. Off by default.

Open Advanced options on a folder to reveal:

• Include patterns - glob patterns that restrict the import to matching files, e.g. *.png, *.jpg. Leave blank to include everything not excluded.
• Exclude patterns - glob patterns for files to skip. New folders start with the default excludes Thumbs.db and *.db so common junk files are ignored. Add patterns such as .DS_Store or ._* for macOS metadata files.
• Asset class (override) - use a different asset class for files from this folder instead of the source default.
• Root collection (override) - nest this folder's collections under a different root than the source default.

The Advanced options summary shows at a glance whether a folder has custom includes, excludes, a class override, or a root override.

Catalog file

A catalog is an optional spreadsheet where each row describes one record (one product, one campaign, …). When present, matched files inherit the row's metadata and are placed in the hierarchy the catalog implies.

You can supply the catalog two ways:

• Connector path - point at a CSV/XLSX file that lives on the same connector as your assets: enter its path in Catalog path, e.g. /Dam/Data/catalog.csv.
• Upload file - upload a CSV or XLSX directly into Freedam (use Replace to swap it later).

The catalog is optional. Leave it blank to import only the asset files; matching then falls back to filename-only.

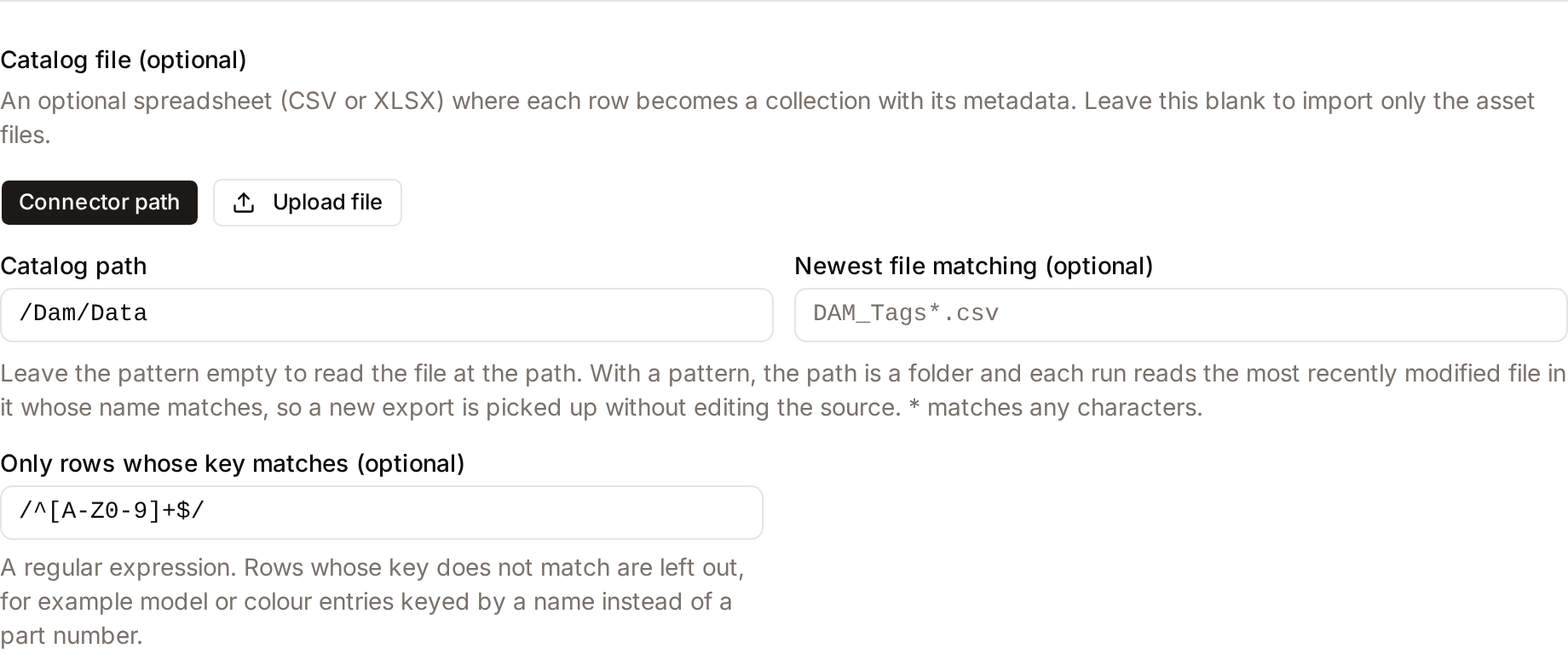

Reading the newest export in a folder. In Connector path mode, fill in Newest file matching (optional) with a filename pattern such as DAM_Tags*.csv (* matches any characters). The path field then becomes Catalog folder, and each run reads the most recently modified file in that folder whose name matches. A team that drops a new export into the folder does not have to edit the source. Leave the pattern empty to read the single file at the path.

Leaving rows out. Only rows whose key matches (optional) takes a regular expression, e.g. /^[A-Z0-9]+$/. Rows whose key does not match are left out, for example model or colour entries keyed by a name instead of a part number.

Two columns drive matching and naming. You choose them in the Column mapping step, after Freedam has read the catalog's headers (Detect columns):

• Key column - uniquely identifies each row (e.g. a SKU or product code). Files are matched against this column.
• Name column - optional; names each collection created from a row (e.g. the product title). Falls back to the key when blank.

In the same step, each catalog column is mapped to a target: Built-in field, Hierarchy level, Vocabulary, Collection metadata, Asset metadata or Skip. For a vocabulary column whose cells hold several values (for example PD 3.0;QC 2.0), turn on Split into multiple terms and set the Separator.

Once a run has completed, the source detail page shows a Catalog card with the file the last run read, its number of products and its modification date. If products the source still holds are missing from the latest catalog, the card gives their number. They keep their values and collections.

Matching files to catalog rows

Turn on Match files to catalog rows to link each asset file to a catalog row, so it lands in the right collection and inherits its data. Leave it off to drop files straight into the folder's collection.

When matching is on, configure:

• Match against catalog column - the catalog column the resolved key is compared to (usually the key column).
• Extract the key from the filename with a pattern - choose how the key is read from the filename:
  • Off - the whole filename without its extension is the key. 12345.jpg matches the value 12345.
  • On - use a pattern when the key is buried inside a longer filename, e.g. pull 12345 out of product_12345_front_v2.jpg.

Building the pattern. Rather than writing a regular expression by hand, you label the parts of a sample filename under Label the parts of a filename: Freedam splits a real filename into segments at the chosen Delimiter and you click each segment to set its role (the key, a role, a sequence number, and so on). Try another file loads a different sample. From those labels Freedam generates a regular expression with a named capture group for the key. The generated pattern is shown read-only. To override it, open Advanced: edit regex, click Edit manually and write the expression directly. A manually-edited pattern is validated as you type:

• It must be wrapped in slashes, e.g. /(?P<key>\d+)/.
• It must contain a named group such as (?P<key>…) to capture the key.
• It must be a valid regular expression.

A file's key is read from its name when the file is new or has changed. After you change the pattern, files that were already imported keep their previous key until they change at the source. Ask Freedam support to re-read the keys of existing files if you need the new pattern applied to them.

Live preview. As you adjust the column and pattern, Freedam samples real files from your folders and shows, per file, the Resolved key, whether it Matched, and the resolved Target, Section, and Disposition - exactly where each file would land if you ran the import now. A summary line reports how many sample files matched and how many catalog rows have a matching file, so you can verify the mapping before running anything.

Group files into one collection per match key

Turn on Group files into one collection per match key to create one collection per distinct match key, instead of dumping matched files into a single shared collection.

• When a catalog row exists for that key, the collection is placed in your catalog hierarchy and filled with the row's metadata.
• When no catalog row exists yet, the collection sits flat at the root.

The important part: a flat per-key collection is automatically re-nested and enriched on a later run once a matching catalog row appears - the collection keeps its identity, so no duplicate is created and the files already attached stay put. This is what makes partial or late-arriving catalogs work: you can start importing files before the full catalog is delivered, and the hierarchy fills in by itself as catalog rows arrive.

Unmatched files (orphan routing)

An unmatched file is one whose key couldn't be extracted from its filename, or whose key has no matching catalog row. Choose what happens to these:

• Keep unmatched files at the root - they are imported into the source's root collection.
• Put them in a separate collection - pick an existing collection with the collection picker, and all unmatched files go there.

Routing unmatched files to a dedicated collection (rather than scattering them at the root) makes it easy to review them and refine the pattern. Note that with per-key grouping on, a file whose key was extracted but has no catalog row still gets its own per-key collection - orphan routing only catches files where no key could be resolved at all.

File disposition (skip)

Some sources ship derived or duplicate files alongside the originals - for example web-optimised renditions. Under File disposition you can mark these to be skipped so they are never downloaded or imported:

• Disposition token - pick the filename token (a named group from your pattern) that distinguishes the variants.
• For each value that token can take, choose Import or Skip.

Skipped files are recorded but never streamed or ingested, so they cost no storage and never become assets. (You need a named token in the filename pattern before this control is available.)

Sections

If the target collection type defines asset sections, you can sort each file into the right section automatically. Sections are slots within a collection - for example Main image, Gallery, Documents, Videos - defined on the collection type (in Admin → Collection Types), so they apply to every collection of that type.

Under Sections, pick the Section token (a filename token) and map each of its values to a section. Set a Default section for files whose token value isn't mapped. A file whose section can't be resolved lands in the collection's Ungrouped area.

Note: This control only appears when the target collection type has sections configured. If it doesn't, the control tells you so - add sections to the collection type first.

Vocabularies and metadata from filename tokens

Beyond the key, a filename pattern can capture extra tokens (role, document type, shot number, …). Under Filename metadata, map each captured token to a target:

• Vocabulary - capture the value as a controlled-vocabulary facet. Freedam auto-provisions the vocabulary and its terms if they don't exist yet, so a token like role can populate an image_type facet without any manual setup.
• Asset metadata - write the value into an asset metadata field.
• Skip - ignore the token.

Two special roles help with image sets:

• Primary image - pick the token that marks the hero shot. A file is treated as primary when this token is absent from its filename (e.g. SKU.png is the hero, SKU_PSP_1.png is a variant). The primary becomes the collection cover.
• Image order - pick a numeric token that orders images within each record (primary first).

This complements catalog column mapping: catalog columns feed collection-level metadata and the hierarchy, while filename tokens feed per-file metadata and facets.

Targets recap

When the mapping is complete, every imported file resolves to:

• a target collection - a catalog-nested collection, a flat per-key collection, the folder's collection, or the orphan collection;
• a section within that collection (if sections are configured);
• a disposition - Import or Skip;
• an asset class (source default or folder override);
• whatever metadata and facets its catalog row and filename tokens supply.

The live preview shows all of this before you run, so you can confirm the mapping is right.

---

Manual vs Scheduled Refresh

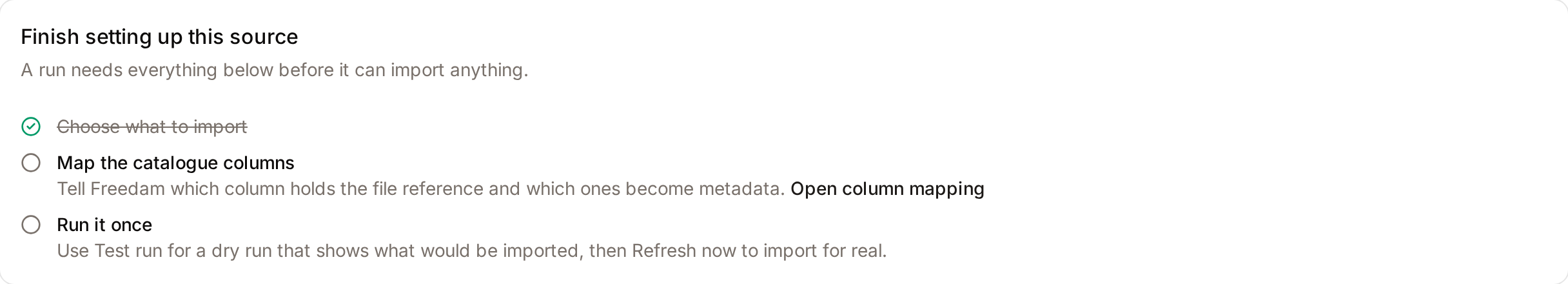

Next steps checklist

Until a source has everything a run needs and has run at least once, the top of its detail page shows a Finish setting up this source checklist. Each unfinished step links straight to the matching step on the Edit page:

• Choose what to import - select folders on the connector or upload a catalogue file (Folders & catalog).
• Map the catalogue columns - only shown when a catalogue is configured; tell Freedam which column holds the file reference and which ones become metadata (Column mapping).
• Run it once - use Test run… for a dry run first, then Refresh now.

While steps are missing, Refresh now is disabled and explains why on hover (Finish the setup steps above before running this source.), so a run cannot be queued that would import nothing. Once the source is ready the card turns into a short Ready to run note until the first run completes, then disappears.

Triggering a refresh manually

From the source detail page, click Refresh now to queue a full run immediately. The run detail page shows live progress. The button stays disabled until the next-steps checklist above it is complete.

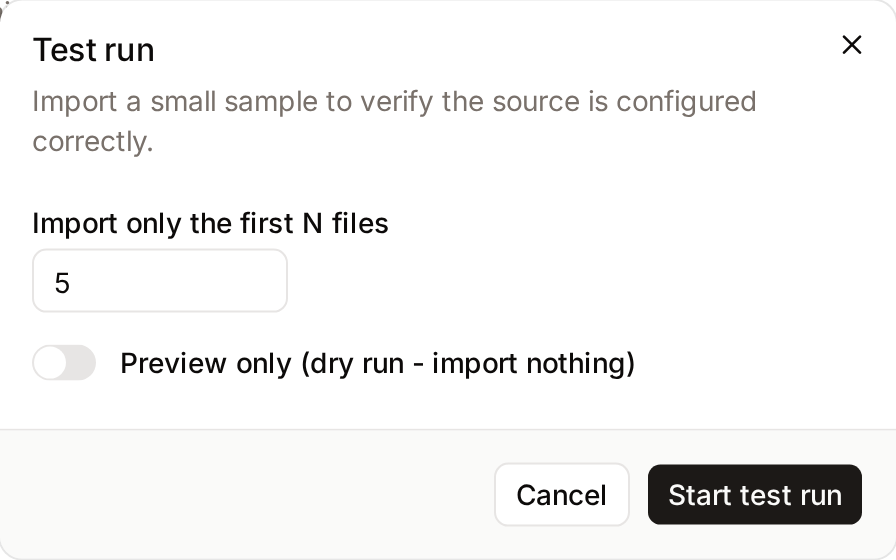

Test run (sample import or dry run)

Before committing a new or reconfigured source to a full import, click Test run… to open the test-run dialog. It offers two ways to validate the setup safely:

• Import only the first N files - Freedam imports a small sample (the first N matched files) so you can confirm assets land in the right collections, sections, and with the right metadata before running the full library.
• Preview only (dry run - import nothing) - Freedam builds the full manifest and computes the plan, but writes nothing. In dry-run mode the N-files limit is ignored: the complete plan is shown, but no files are downloaded or imported.

Click Start test run to queue it. The run page shows a Preview badge for a dry run and a Limited to N files badge for a sample import. On a limited run, the outcome states the limit and how many new and changed files the source has in total, and the chips are labelled Plan for the whole source.

A test run is the recommended last check after configuring the mapping: import five files, review where they landed, adjust the pattern or section/disposition maps if needed, then run for real.

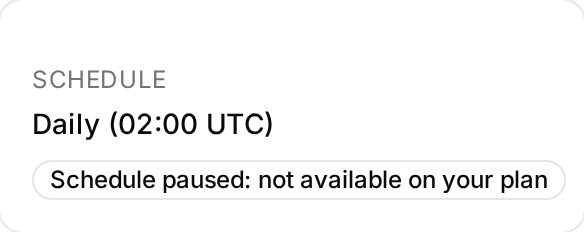

Setting a schedule

Note: Scheduled refresh is included in the Business plan (and Tailored plans). On the Free and Team plans the Refresh frequency field on the Edit page is locked and shows an upgrade notice. A schedule saved earlier, for example during the 30-day trial, which unlocks every feature, is kept but paused: the scheduler skips the workspace, the source page shows a Schedule paused: not available on your plan badge, and the schedule resumes automatically after an upgrade. Refresh now and test runs work on every plan.

Google Drive sources have no Refresh frequency choice at all, on any plan, because their hand-pasted access token expires within about an hour (see Connecting to Google Drive). Refresh them manually.

Open Edit on the source and go to the Schedule & policy step. Choose a Refresh frequency:

Option	Runs
Manual only	Never on its own. Use Refresh now.
Every hour	At minute 0 of every hour.
Every 6 hours	At 00:00, 06:00, 12:00 and 18:00 UTC.
Daily (02:00 UTC)	Every day at 02:00 UTC.
Weekly (Mondays, 02:00 UTC)	Every Monday at 02:00 UTC.
Monthly (1st, 02:00 UTC)	On the 1st of each month at 02:00 UTC.
Custom (cron expression)	When the cron expression you enter matches.

Custom (cron expression) shows a Schedule (cron expression) field. It takes a standard 5-field cron expression (minute, hour, day of month, month, day of week) in UTC:

# Every weekday at 06:00 UTC
0 6 * * 1-5

# Every 15 minutes
*/15 * * * *

The source list and the source detail page show the schedule by its preset name, or the cron expression for a custom schedule.

The per-tenant scheduler checks every minute for sources whose cron expression is due. It dispatches at most one active run per source at a time - if a previous run is still executing when the next tick fires, the tick is skipped.

When a scheduled run fails, the source waits for its next scheduled time; it is not retried in between. A run that has started and then makes no progress for two hours is closed as failed. A run still waiting in the queue is not closed, however long it waits.

---

Deletion Policies

When files or catalog rows disappear from the upstream system, Freedam applies the source's deletion policy. Two policies are available, set under the Schedule & policy step on the Edit page.

Soft-archive (recoverable) - default

Assets and collections created by this source are soft-archived: they are hidden from the gallery but their data is preserved. If the item reappears upstream in a later run, it is automatically restored.

Use this policy when upstream systems occasionally remove items temporarily or reorganize folders.

Additive (never remove)

Nothing is done about missing items. Freedam only ever adds or updates. Previously ingested files stay in the gallery regardless of what changes upstream.

Use this policy for append-only archives where the upstream system can remove files for reasons unrelated to whether Freedam should keep them (e.g. storage rotation).

---

The Source Run Page

Each time a refresh runs, Freedam creates a Run record. Open it from the Run history table on the source detail page. The run page header also has an Unmatched button that jumps to this source's unmatched files.

What happened (outcome)

Every run page leads with a plain-language summary of what the run did, so you don't have to decode raw numbers:

• A completed run reads like "Imported 2,501 new files. 18,661 files were already up to date and skipped. Nothing was changed or removed."
• A preview (dry run) says it only shows what a real run would do - nothing was imported.
• A failed run explains why in plain words. For example, if you trigger a refresh while another run for the same source is still going, the second run stops automatically and says so - no files are touched.

Summary chips

Below the outcome, the plan (computed before any data is written) is shown as labelled, colour-coded chips. Each chip is hidden when its count is zero, and hovering it explains the term:

Chip	Meaning
new	Files not seen before - imported as new assets.
updated	Files that already existed and changed at the source - the existing asset gets a new version (not a duplicate).
unchanged	Already in Freedam and identical at the source - skipped, not re-downloaded. This is the normal, healthy state for a re-sync.
no longer in source / archived	Files missing from the source. Under the additive policy they are kept (shown as "no longer in source"); under the soft-archive policy they are archived (recoverable).
restored	Previously archived files that have returned to the source.
unmatched	Files with no matching catalog product - imported without catalog metadata. Click the chip (or the Unmatched button) to review them.

Under What these mean, the run also reports the total downloaded size (or the size that would be downloaded, for a preview) - this covers only new and changed files; unchanged files cost no bandwidth. A timeline footer shows who triggered the run, when it started and finished, the duration, and the run number.

Downloads

A run finishes as soon as it has queued its files; the files are then downloaded and processed one by one. The Downloads card shows how many files are imported, waiting to be downloaded, in progress, failed or cancelled, and lists each failed file with the reason. Files waiting to be downloaded are listed separately and are never counted as stalled: on a large run they can wait for hours behind other imports. A file that started downloading and has made no progress for more than 6 hours is counted as stalled. The page keeps refreshing while files are waiting or in progress, and Cancel remaining downloads stops the files that are still waiting.

A cancelled download, or one that failed while downloading, is fetched again by the next run. A file that was rejected because the storage limit was reached is also fetched again by the next run, once space is available. A file that is no longer available at the source is not retried.

The run history table on the source page also shows, for each run, how many downloads failed and how many are waiting or in progress.

Cancelling a run

Click Cancel on a run that is in progress. The run stops before its next step, and downloads that have not started are stopped. Files that were already imported stay in Freedam. After a run has finished, Cancel remaining downloads stops the files still waiting to be downloaded; the button shows only while files are waiting. Cancelled files are fetched by the next run.

Execution progress

While a run executes, the page shows a Progress card with the number of successful, failed and archived items. It updates every two seconds. Once the run completes, the final counters are shown.

Execution log

The Execution log lists the 200 most recent items of the run with the Item, the Action, the Workflow status of the imported asset, an Error and the time. A failed item shows which step failed, never a technical error message:

• The file could not be imported. The next run will try again.
• The catalog row could not be applied. The next run will try again.
• The item is no longer in the source but could not be archived. The next run will try again.

The next run plans every failed item again.

---

Reviewing Unmatched Files

An unmatched file is one that imported without a matching catalog product - so it has no catalog metadata and no product collection. This is normal when assets arrive before the catalog row that describes them exists. The Unmatched view is where you reconcile them.

Getting there: click the Unmatched button on the source detail page or on any run page, or click the unmatched chip in a run's summary.

Layout

The page is a split view:

• Left - unmatched files grouped by their extracted key (SKU). Each row shows the key and how many files it covers. Search by SKU, sort, and page through the groups.
• Right - a thumbnail preview of the files in the selected group. Thumbnails are capped at a sensible size and load lazily, so even large groups stay quick to browse. Click a thumbnail to select it (for bulk actions).

Actions

• Re-link - re-checks already-imported files against the current catalog and attaches any that now match. Use this after you have added the missing SKUs to the catalog: import the catalog rows, then re-link, and the orphans become properly catalogued assets without re-downloading anything.
• Acknowledge - hides a SKU group from the unmatched list for items you have reviewed and intentionally accept (for example, brand assets that legitimately have no catalog SKU). Nothing is deleted. An acknowledged group shows the Acknowledged status and a Reopen action that puts it back on the list.
• Delete - moves the selected files to Trash (recoverable). Use this only for files that should not be in Freedam at all. If a file's SKU just needs adding to the catalog, add it and use Re-link instead - don't delete.
• Export missing SKUs - downloads a CSV of the SKUs that have unmatched files, so you can hand it to whoever maintains the catalog.

You can select individual images for a bulk delete, or select whole SKU groups to act on them together.

Recommended workflow

1. Open the Unmatched view and Export missing SKUs.
2. Add those SKUs to the source's catalog - update the catalog file it reads (or upload a new catalog) - so the new rows are ingested on the next refresh.
3. Come back and click Re-link - files whose SKU now exists in the catalog attach automatically.
4. Acknowledge the remainder that genuinely have no catalog entry, so the list reflects only items still needing attention.

---

Refresh Cadence and Safety Stops

Catalog size check

Under the soft-archive policy, a catalog with fewer than half the rows of the previous completed run stops the run with an explanation, before anything is archived. The check applies when the previous catalog had at least 20 rows. This prevents a transient server error (an empty or partial catalog) from archiving most of your library. Check that the catalog file or connector is healthy, then refresh again. If the smaller catalog is intended, run the source once with the additive deletion policy, then switch back.

Concurrency lock

Only one run can execute per source at a time. The scheduler simply skips a tick while a run is still going. A manual refresh started while another run is in progress is stopped automatically rather than queued - its run page shows "Another sync for this source was already running, so this run was stopped automatically. No files were touched." Wait for the in-progress run to finish, then refresh again.

---

Asset Versioning

When Freedam detects that an upstream file has genuinely changed, it creates a new version of the existing asset rather than creating a new asset or overwriting silently.

"Genuinely changed" matters: a refresh compares the stored fingerprint (ETag / modification time / content hash) and, as a final guard, the actual file contents. A byte-identical re-import is skipped - no new version, no re-processing - so repeated refreshes of an unchanged library don't pile up redundant versions. A new version is created only when the bytes differ.

What this means in practice:

• The asset ID stays the same. All links, collection memberships, shares, and rights records are unaffected.
• The version history shows the previous file alongside the new one.
• Any user who had a share link to the asset will see the updated file automatically.
• The change is recorded in the run's item log with the action updated.

This behaviour is identical to manually clicking "Replace file" on an asset's detail page - it uses the same versioning pipeline.

---

Copying a Source to Another Environment

You can export a source's configuration as a JSON file and import it into another Freedam workspace, for example to prepare a source on a test workspace and then move it to production. You need the Manage import sources permission.

Export a source

On the source's page, open Configuration and choose Export JSON. Freedam downloads a file named after the source.

The file contains the source's name, connector and connection settings, catalog settings, asset folders, matching and mapping rules, deletion policy, schedule, and targets such as the asset class, workflow status and collections. Targets are saved by their code or name so they can be matched in another workspace.

• Secrets are not exported. Passwords, secret keys and tokens are replaced by placeholders.
• The catalog file is not included. Upload it again on the destination workspace.
• The file records who exported it and from which workspace. Treat it as an internal document.

Import a source

1. Open Import JSON: on the Data Sources list to create or match a source, or from a source's Configuration menu to update that source.
2. Choose an Import mode:
   • Auto - update if matched, otherwise create: updates the source that was imported before from the same file, or that has the same connector and name. Otherwise creates a new one.
   • Create a new source.
   • Update an existing source: choose the Destination source.
3. Click Choose JSON file. Nothing is saved yet: Freedam shows a Preview.
4. Review the preview:
   • The badge says whether the import will Create or Update a source.
   • Errors must be fixed before applying, for example a missing asset class or an invalid schedule.
   • Under Connector secrets, enter each secret value, or keep the existing one when updating.
   • Under Collections, collections found on this workspace are marked as matched. For the others, enter a Destination collection ID, or leave it empty to import without it.
   • Dependencies lists every asset class, workflow status and collection type as Resolved, Missing or Ambiguous.
5. Click Re-check after fixing anything outside the page, then Apply import.

A preview is valid for 30 minutes. A source created by an import is always disabled: check it, upload its catalog file if it has one, and enable it when ready. An updated source keeps its current enabled or disabled state.

Don't change the import mode after previewing; choose the file again instead, so the preview matches what is applied.

Recovery

Recovering from auth_failed

A run that cannot log in stops with auth_failed. The error is shown on the run page and as the source's last-run status; Freedam does not disable the source. It emails the users who manage data sources, and the person who started the run, when a run fails or finishes with errors. One email is sent per series of failures: the next one comes only after a run has succeeded and a later run fails. The source's Last run shows the failure on the list and on the source page. To fix it:

1. Open Admin → Sources and find the source whose last run shows auth_failed.
2. Click the source name to open its detail page.
3. Click Edit and update the credentials (username, password, or access token).
4. Click Save changes.
5. Click Refresh now to verify the connection works. On a scheduled source, the next due tick will run normally from then on.

Restoring archived items

Items archived by the Soft-archive (recoverable) deletion policy are not deleted - they are hidden. If the items reappear upstream (e.g. the file was temporarily moved or renamed), the next refresh will automatically restore them.

Archived items can only be restored this way today. Freedam has no screen to un-archive a source-archived asset or collection by hand, individually or in bulk. To bring an item back:

1. Put the file or catalog row back in the upstream system, at the same path or with the same match key.
2. Open the source and click Refresh now, or wait for the next scheduled run.
3. Check the run's items: the restored entries are listed as restored, and the assets and collections are visible again with their metadata intact.

If the item cannot return upstream, upload the file again as a new asset. The archived copy and its metadata stay hidden.

Investigating a failed run

1. Open the source and find the failed run in the run history table.
2. Click the run to open its detail page. The outcome banner at the top states why the run failed in plain language (for example, a concurrency stop, or a processing error).
3. For files that were queued but not imported, check the Downloads card: it lists each failed file with the reason.
4. For per-item problems, check the Execution log: each failed item states which step failed (see Execution log). The technical details stay in the server logs.
5. Common error codes are explained in Troubleshooting below.

---

Troubleshooting

"not_webdav" on probe

• Symptoms: The test connection fails with a not_webdav error immediately.
• Cause: The server at that URL does not return a DAV: header in its OPTIONS response. This usually means the port is wrong, the URL path doesn't point to the WebDAV root, or the server isn't actually serving WebDAV.
• Fix: Double-check the base URL and port. For Synology, the default WebDAV HTTPS port is 5006, not 443.

"auth_failed" on probe or run

• Symptoms: The probe or a run fails immediately with auth_failed.
• Cause: The username or password is wrong, or the account doesn't have permission to read the specified path. On a Google Drive source, the pasted access token has most likely expired (they last about an hour).
• Fix: Verify credentials with a WebDAV client (e.g. Finder on macOS or Cyberduck) using the same URL, username, and password. Then update the source credentials and retry. For Google Drive, generate a new token, paste it in, and click Refresh now.

"not_found" on probe

• Symptoms: The probe returns not_found.
• Cause: The base path you specified doesn't exist on the server (e.g. you typed /DAM but the folder is /Dam - paths are case-sensitive on most WebDAV servers).
• Fix: Check the exact folder name on the server. On Synology you can browse the folder structure via the DSM web interface.

"network" or TLS error on probe

• Symptoms: The probe times out or fails with a TLS certificate error.
• Cause: The server is unreachable (firewall, DNS, wrong hostname) or its TLS certificate is self-signed and Verify TLS certificate is on.
• Fix for TLS: If you trust the server, turn off Verify TLS certificate. Read the warning under Step 3 of the WebDAV walkthrough and confirm this is appropriate for your setup.
• Fix for network: Ensure the Freedam application server can reach the upstream host on the specified port. If Freedam runs in Docker, you may need to allow outbound traffic to the upstream host.

Orphan files in the plan

• Symptoms: The run plan reports more orphan files than you expect.
• Cause: The filename pattern isn't extracting a key (or the key doesn't match a catalog row) for those files.
• What to do: Review the sample orphan filenames in the plan, and use the live preview on the Edit page to see resolved keys per file. If the filenames follow a different naming convention than expected, adjust the pattern under Matching files to catalog rows. Remember that orphans are not lost: they are routed to the source root or to your configured orphan collection, and with per-key grouping on, keyed-but-uncatalogued files still get their own per-key collection that fills in automatically when the catalog catches up.

Run stuck in "building_manifest" or "diffing"

• Symptoms: A run stays in building_manifest or diffing status for an unusually long time.
• Cause: The manifest is very large (tens of thousands of files) and building it takes time, or the upstream server is responding slowly.
• What to do: Wait. For a source with 8 000+ files over a slow WebDAV connection, manifest builds can take several minutes. A run that has started and then makes no progress for two hours is closed as failed. You can also cancel it and start a new one.
